Low Consumption Plastic Pulverizer Machine With Feeding Equipment , Blades
Plastic Pulverizer Machine Introduction
Plastic Pulverizer Machine belongs to disc pulverizer series, which has the advantages of high-output and low-power. This pulverizer is mainly applied for pulverizing polyethylene (PE, including LLDPE,LDPE,MDPE,HDPE), polyvinylchloride (PVC, including hard PVC and soft PVC), polypropylene (PP), polystyrene (PS), ABS, Nylon, EVA, PET and other materials. This pulverizer is used to reduce the costs of materials, materials modification and improve product quality. Main parts of the pulverizer system is independent control cabinet, pulverizing host, cyclone separator, air shutter, vibration sieve, draft fan, dust catcher, hopper and pipes .
Plastic Pulverizer Machine Operating Procedure
The operation procedure of the machine is very easy, one operator can make the pulverizer work well. Show you as follow:
· Starting
Put your raw materials which dimension less than 8mm (hereinafter referred to as granule) into hopper (Part 14); Start the pulverizer system by the independent control cabinet (Part 1); Then open the valve in the hopper and vibration feeder (Part 6).
· Stopping
Close the valve and vibration feeder, then stop the pulverizing system by the independent control cabinet two minutes later.
Plastic Pulverizer Machine Advantages
It is obvious that Huibang plastic grinder is able to grind PE, PVC, PP, ABS, PET, PLA, EVA and so on. This plastic grinder consists of feeding equipment, blades, cooling pipe, cyclone separator, sieving machine, dust collection equipment. Grinder capacity ranges from 50kg/h to 880kg/h.
1. Adjustable outlet powder size: 0.18mm-1.7mm
2. Automatic regrinding system
3. Low consumption, high capacity and save labor cost
Plastic Pulverizer Machine Technical Parameters
| Name | Low Consumption Plastic Pulverizer Machine With Feeding Equipment , Blades |
| Model | MF-500 | MF600 | MF-800 |
| Main Motor Power | 37 kw | 45 | 75 kw |
| Draft Fan Power | 5.5 kw | 7.5 | 11 kw |
| Air shutter Power | 0.75 kw | 0.75 | 0.75 kw |
| Vibration Sieve | ZDS-1000 | ZDS-1000 | ZDS-1200 |
| Output | 80-500 kg/h | 120-800kg/h | 200-1200 kg/h |
| Dimensions | 1900*1700*3900 mm | 3200*3000*4200mm | 4000*3500*4500 mm |
| Weight | 2280 kg | 2680kg | 3580 kg |
Attention:the throughput depends on the types and size of grinding materials,along with the fineness of the grinding materials.Usually, the original diameter of the material ranges from 5 to 8 mm.

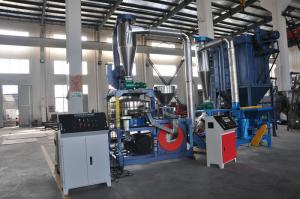

Plastic Pulverizer Machine Details
